Pelekat Ultra Jernih Dengan Stamping Panas Pencetak Label Pelekat DTF
Pencetak Stiker Kristal UV DTF Saiz A1 Scanext UV DTF 7124A
Aplikasi Label Stiker Crystal UV DTF: Logam, kaca, seramik, kayu, kulit, plastik, pvc, dan lain-lain
Ciri - ciri Pencetak Kristal UV Scanext UV DTF 7124A Saiz A1
- 11 Warna Dakwat UV
- Lebar Cetakan ialah 700mm
- Cetakan Automatik Sepenuhnya, Roll Feeder, Sistem Auto Collect dan Laminate Molding
- Kelajuan cetakan ialah 3.8 meter sqm/h
- Tiada proses pengeringan diperlukan
- Lekatan yang baik pada permukaan melengkung atau lasak
- Cetakan UV yang Berkesan
- Tiada proses pemanasan diperlukan
- Stiker UV Kristal dengan Hot Stamping Gold atau Silver (Scanext UV DTF 7124A / 13124A / 16124A)
Kelajuan Cetakan
- Spesifikasi
- Risalah
- Video

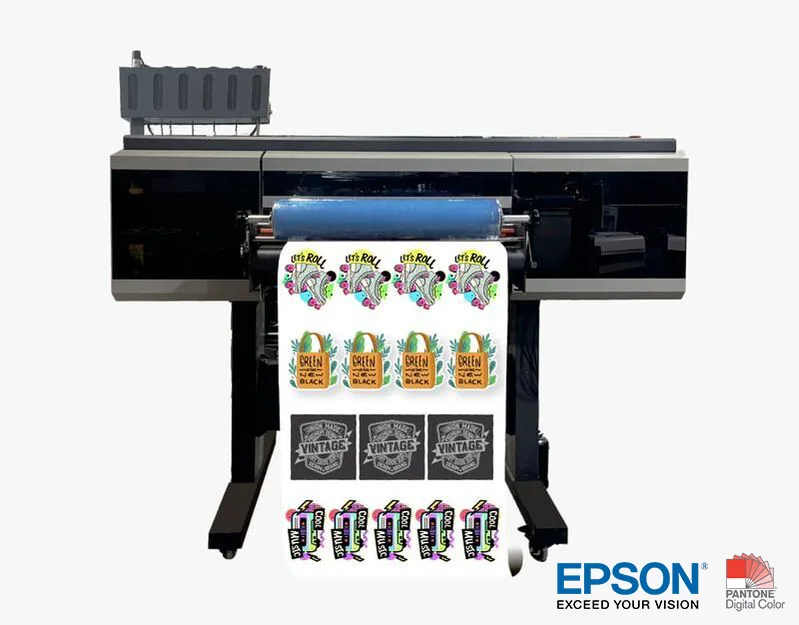

A1 Size Crystal UV DTF Sticker Printer Scanext 7124A
8 Pass: 3.8 sqm/h
8 Pass: 360x3600dpi
12 Pass: 720x2400dpi
- Max Printing Width: 700mm / 27.3
- No of Colour: 11 Colour: C,M,Y,K,Lk, LLK, LC, LM, V1, V2, W
- Spot UV and Foil Stamping Printer
- Ink Type: UV Ink
- Printing Media: Release Paper, Release Film, AB Film
- Printing Speed:
8 Pass: 3.8 sqm/h
- Printing Resolution:
8 Pass: 360x3600dpi
12 Pass: 720x2400dpi
- No of Printhead: 3 units

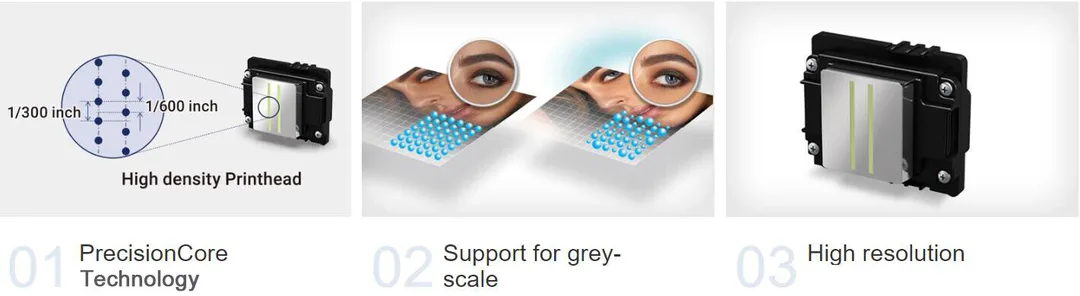

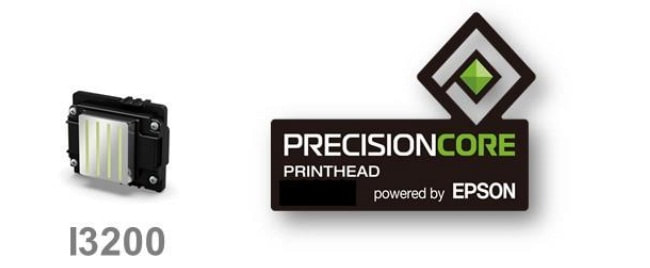

- Print Heads Model: Epson I3200(8)-U1HD, Epson I3200(4)-U1, Epson I1600-U1
- Ink Capacity: 1000ml Per Color
- Ink Supply System: White ink circulation, White ink stirring，CISS Ink Supply System
- Three Heating Sections: Pre Heater, Printing Bed Heater, Rear Heater (30 to 65 degC)
- Auto feeding & Collecting System: Standard Configuration
- Printer Media Feed Method: Roll Paper: One Roll, Back Load, Front Output
- Printer Maximum Media Roll Outer Diameter: 230 mm or less
- Laminate Maximum Media Roll Outer Diameter: 150mm or less
- Printing software: RIIN & Hosonsoft
- Operating System: Window 7 and above.
- Network Interface: 1000Mbps Ethernet
- Printhead maintain: Head clean during and after printing, Keep wet system
- Working Environment: Temperature 20 to 28 degC, Humidity 65% to 75%
- Printing Temperature: 120 to 145degC
- Printer Dimension: 1980mm (L) x 980mm (W) x 1650mm (H)
- Printer Weight: 180kg
- Power Supply: AC 220V ± 10%, 50/60 HZ,
- Power Consumption: 350W
- What's In the Box: Printer, Printer Stand, Roll Feeder & Auto Collect System, Initial Ink Cartridge, AC Power Cable, Software USB Pen Drive, Waste Ink Tank.
- Warranty: 1 Year

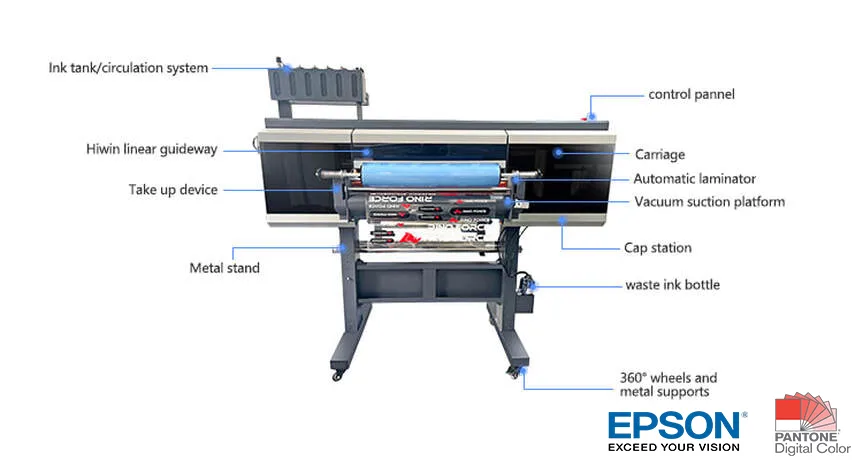

Scanext UV DTF 7124A Printer

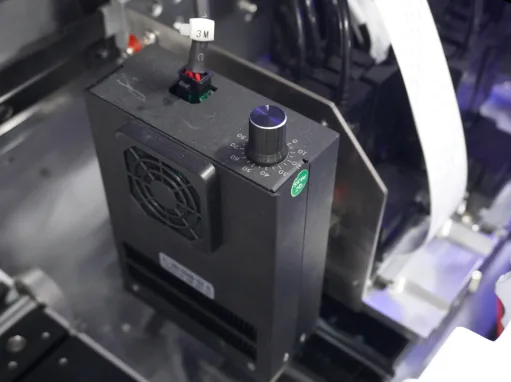

Gunakan lampu UV penyejuk udara berkuasa tinggi

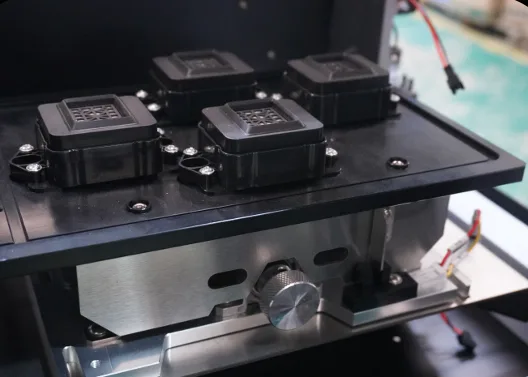

Sistem Pembersihan Muncung Automatik, semburan kilat anti tersumbat dan pelembap

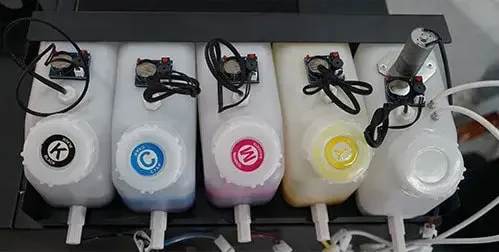

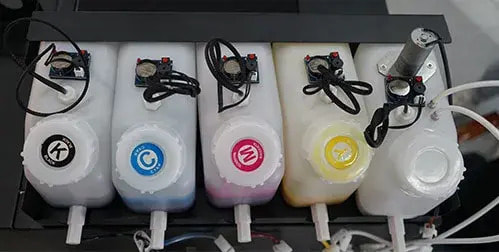

Kartrij Dakwat semuanya dengan penggera dakwat rendah dan Kartrid dakwat putih dilengkapi dengan pengadun dakwat putih. Elakkan set dakwat merosakkan kepala cetakan
Sistem peredaran kacau dakwat putih, memanjangkan hayat pemercik
